HydraBed®
The Original Fully Integrated Bale Handler Features New Design
Elements with More Power and Control Options
Rugged, Dependable Bale Handling

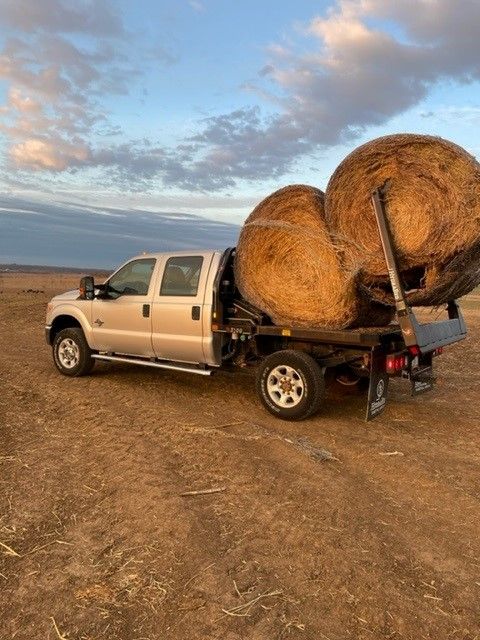

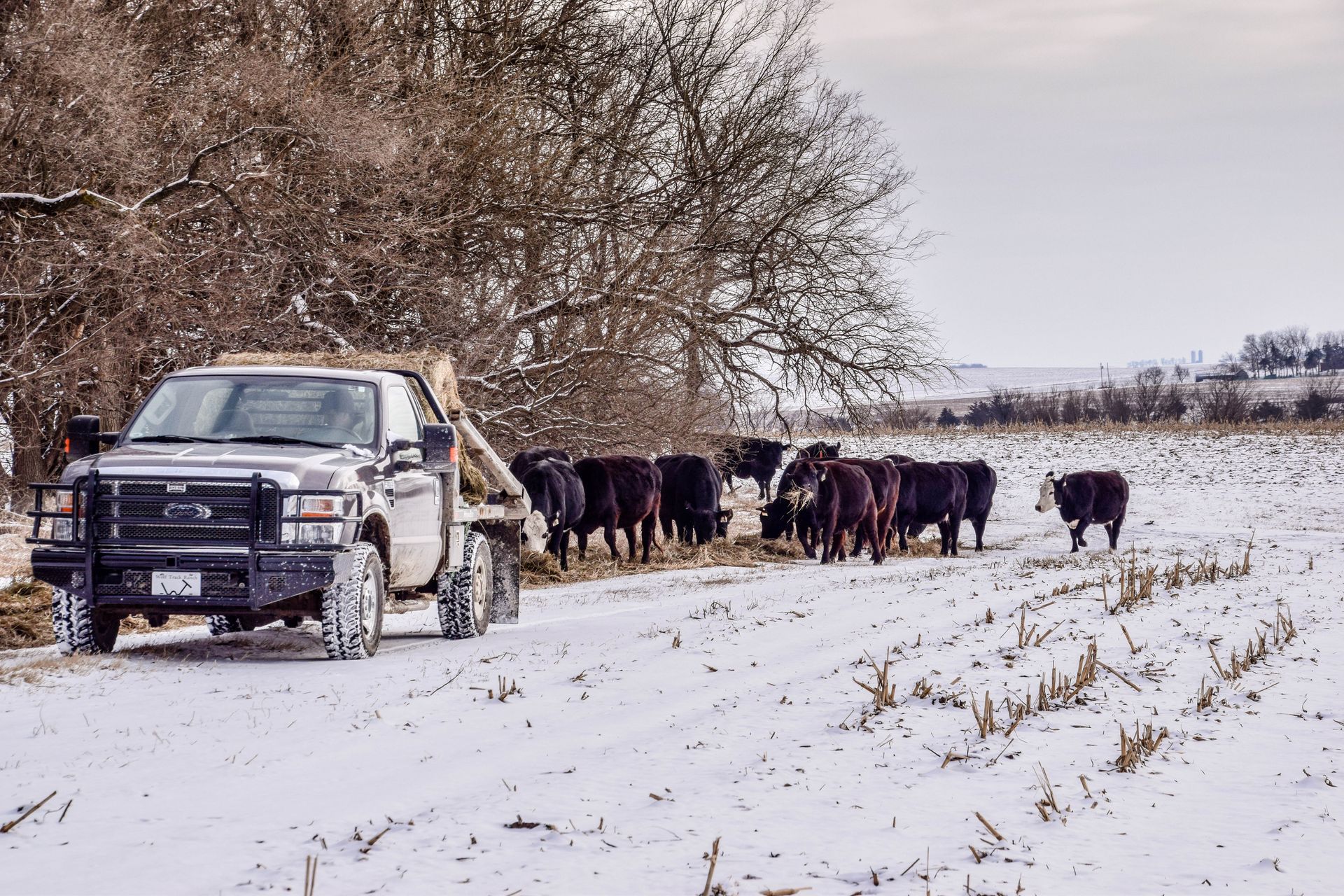

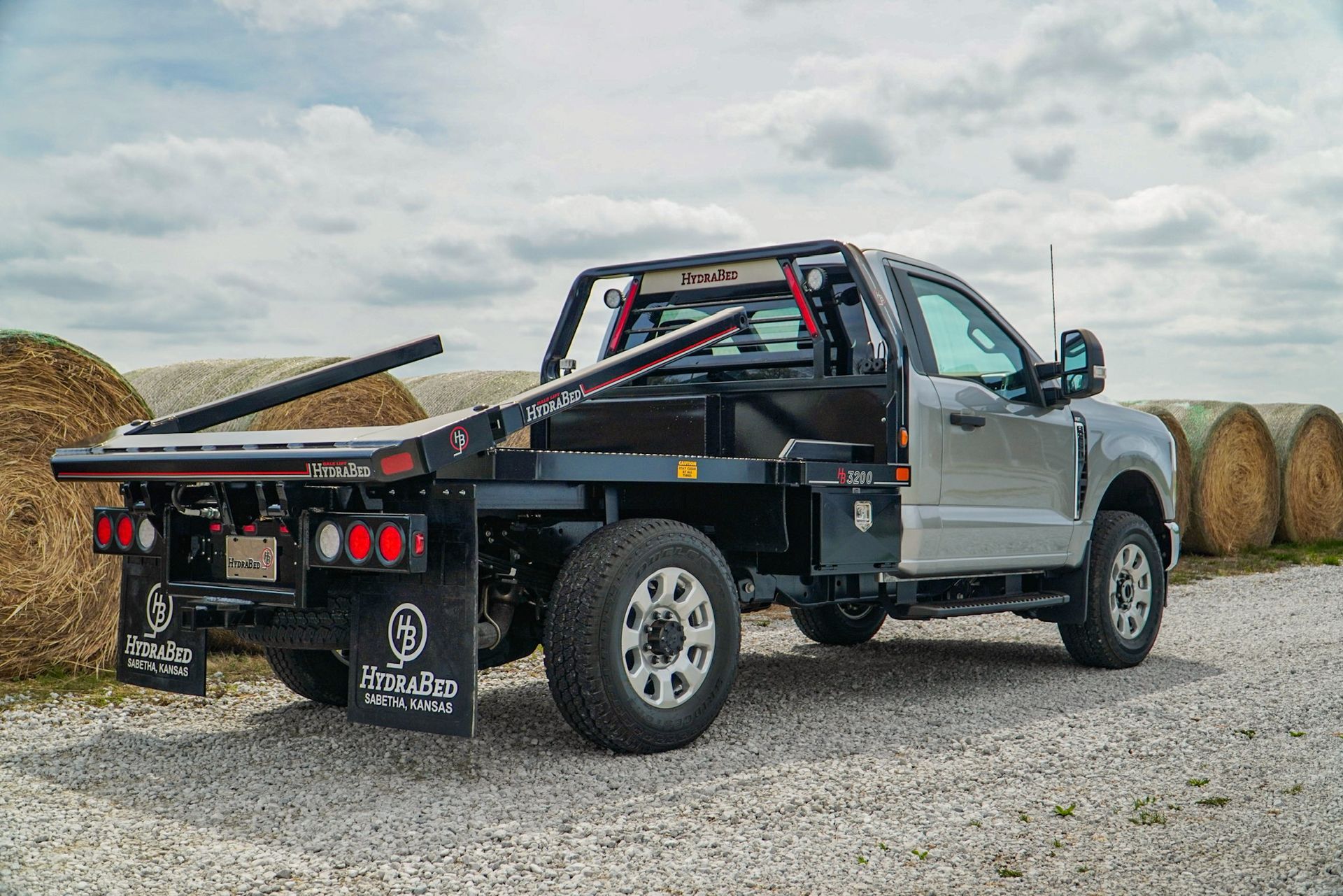

Feeding is one of the most important daily tasks on every livestock operation. Equipment must perform at full capacity under adverse conditions. Our HydraBed® system meets and exceeds those tough conditions and equips your 3/4 ton or larger truck for a wide range of farm and ranch jobs. The flush-mounted, live-hydraulic powered bale handler is totally integrated into the rugged flatbed. Winter feeding, summer hay hauling, year-round trailer towing and many other lifting tasks are easily and safely accomplished. Fingertip hydraulic controls enable you to haul, transport and/or unroll two large round or square bales. Generations of farm and ranch families across North America have proven the rugged dependability of the HydraBed® system on their operations for over three decades.
2 YEAR
SYSTEM
WARRANTY
5 YEAR
STRUCTURAL
WARRANTY
LIFETIME
WARRANTY ON
BALE LOADING ARMS
POWER OPTIONS
Engine Driven
CLUTCH PUMP
Load Speeds:
- Provides bale load times as fast as 4 seconds
- Oil flows from 4.5 GPM to 11 GPM
- Determined by truck engine RPM
Lift Capacity: 3,000 lbs.
Location: Installed under the hood utilizing engine-specific mounting system
Pump Power Source:
Truck engine supplies power via belt drive
ELECTRIC OVER HYDRAULIC
TWO-STAGE PUMP
Load Speeds:
- Provides bale load times as fast as 12 seconds
- Oil flows from 3.7 GPM to 5.5 GPM
- Determined by hydraulic pressure required
Lift Capacity: 3,000 lbs.
Location: Mounted adjacent to system oil reservoir in the HydraBed® headache rack
Pump Power Source:
Truck battery(s) and charging system drive pump motor via power cables
PTO PUMP
(FOR 2020 OR NEWER FORD TRUCKS ONLY)
Load Speeds:
- Provides bale load times as fast as 4 seconds
- Oil flows from 4.5 GPM to 11 GPM
- Determined by truck engine RPM
Lift Capacity: 3,000 lbs.
Location: Installed on the side of the transmission
Pump Power Source:
Truck transmission turns the PTO pump
CONTROL OPTIONS
Five variations offer customized control of the HydraBed® to fit the operational setting and user's preference.
CABLE CONTROLS
offer exceptional speed regulation with the ability to control the flow of oil to any function of the HydraBed®. The resulting responsiveness allows for variable speed feathering for every loading situation.
WIRELESS
REMOTE
incorporates safety features including multi-second ON switch and a time-out function to prevent accidental actuation without denying operational freedom.
PENDANT features hard-wired toggle switch operation, which provides reliable control of all valve functions while adding the option to operate from outside of the truck cab.
REDUNDANT control gives flexibility in choosing the type of control that best fits the task at hand with multiple control set-up: wireless remote and corded pendant.
hydrastx® smooth and precise variable speed joystick control.
the Hydrabed® Difference
Sure Stop™ TECHNOLOGY
Every HydraBed® control system is equipped with SureStop™ technology load control. This feature allows the operator to safely and instantly stop a descending bale at any point and at accelerated operating speeds without damaging the valve, cylinders and hoses.
BALE LOADING SPEEDS
Engine-driven pump provides bale load times as fast as 4 seconds. Electrically driven pump provides load times as fast as 12 seconds. Determined by required hydraulic pressure or truck engine RPMs.
3,000 POUND LIFT CAPACITY
From day one, every HydraBed® has been built with excess lifting capacity to provide easy handling of even the heaviest hay and silage bales.
AUTOMATIC ARM SYNCHRONIZATION
Pioneered by HydraBed® in 1984, this simple, proven re-phasing system provides automatic side-to-side centering of every load.
OPERATOR-FRIENDLY GRIP RANGE
Arms open to 92 inches for unobstructed
approach to bales. Automatic arm synchronization combined with a tight, 28 inch closed position generates positive grip on even less than perfect bales.
MECHANICAL FREE FLOAT UNROLLING
Pioneered by Triple C in 1983, the mechanical free float protects the truck and operator from the impact of bale unrolling by automatically compensating for uneven ground and irregular bales. Consistent, mechanical operation at all temperature extremes.
TIME-TESTED ARM DESIGN
Designed to thrive when subjected to the
extreme horizontal and vertical forces during load handling and transportation.
MAIN REAR CROSS TUBE
Half-inch wall by 4-inch square, this is the key to the HydraBed’s durability and ruggedness. Over-engineered to withstand the tough situations that occur routinely on every livestock operation.
12 INCH TOTAL MAIN HINGE LENGTH
Provides maximum support for every bale
handling cycle. Alloy hinge pins and hinge
bushings with 1/2” thick walls provide ruggedness and dependability.
LEVEL-LOK MOUNTING SYSTEM
Every HydraBed® is installed with our unique Level-Lok mounting system with automatic side to side centering and front to back leveling of the bed. Developed in 1984, this heavy duty bracket system provides the installer ample weld area for secure mounting, customized to your make and model of truck. Once installed, the removal of 6 bolts allows simple bed take-off or transfer.
DEPENDABLE FUNCTION MANAGEMENT
The HydraBed® valve system continues to
feature simple design, proven load holding and reliable pressure management. Multiple control configurations available.
RECESSED GOOSENECK HITCH
The 30,000 lb. rated 2 5/16” gooseneck ball is located just under the upper surface of the HydraBed® beneath an easily opened, ground-accessible door.
DROP HITCH
Integrated into the 6” main frame, the drop hitch features tubular construction for multi-axis rigidity and a 3/4” thick hitch plate with 2” receiver standard.
hydraBed® MODEL SPECIFICATIONS
| HB3100 | HB3200 | HB3250 | HB3300 | HB3350 | HB3550 | |
|---|---|---|---|---|---|---|
| Length | 7' 6" | 8' 8" | 8' 8" | 9' 9" | 9' 9" | 11' 9" |
| Width | 7' 0" | 7' 0" | 7' 8" | 7' 0" | 7' 8" | 7' 8" |
| Installed Weight | 1800 lbs. | 1900 lbs. | 1950 lbs. | 1975 lbs. | 2075 lbs. | 2275 lbs. |
| Cab to Axle | 40" | 56" | 56" | 60" | 60" | 84" |
| Rear Wheels | Single | Single | Dual | Single | Dual | Dual |
