ACCESSORIES

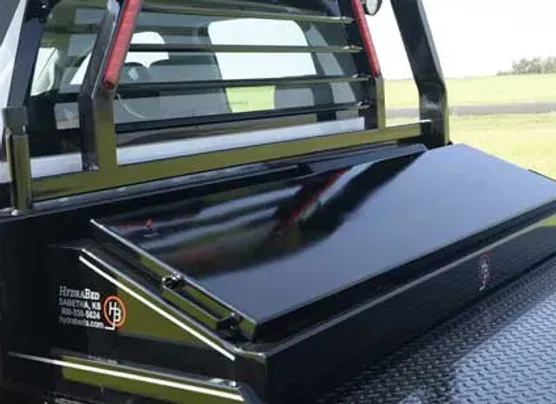

Across Bed Toolbox

Weather Resistant & Efficient

• Construction: 12-gauge steel
• Design Features: tool tray, efficient use of area not occupied by round bale, weather resistant
• Lid: full opening, full opening, left and right side latch access, lockable, stainless steel hinges, gas shock assisted
• Dimensions: 70" wide, 20" front to back, 12" high at front, 4" high at back
• Empty weight: 155 lbs

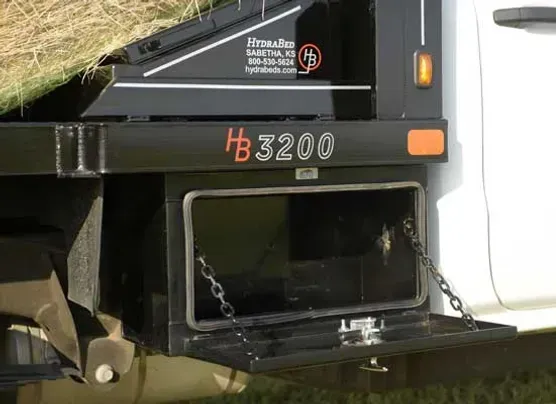

Underbody Toolbox

Weather Resistant & Efficient

• Construction: 12 gauge steel
• Heavy-duty machined door hinges with 5/16″ stainless steel pivot pin, end caps, and grease fittings
• Flush-mounted, locking, stainless steel T-handle latch.
• Industry’s most water and dust resistant door design, further enhanced with an automotive-type bulb rubber seal and X-break in door for rigidity
• Heavy-duty 3/16″ door chains permit utilization of door as a convenient step
• Sizes: 14x09x20, 14x11x24, 14x18x24, 14x18x36

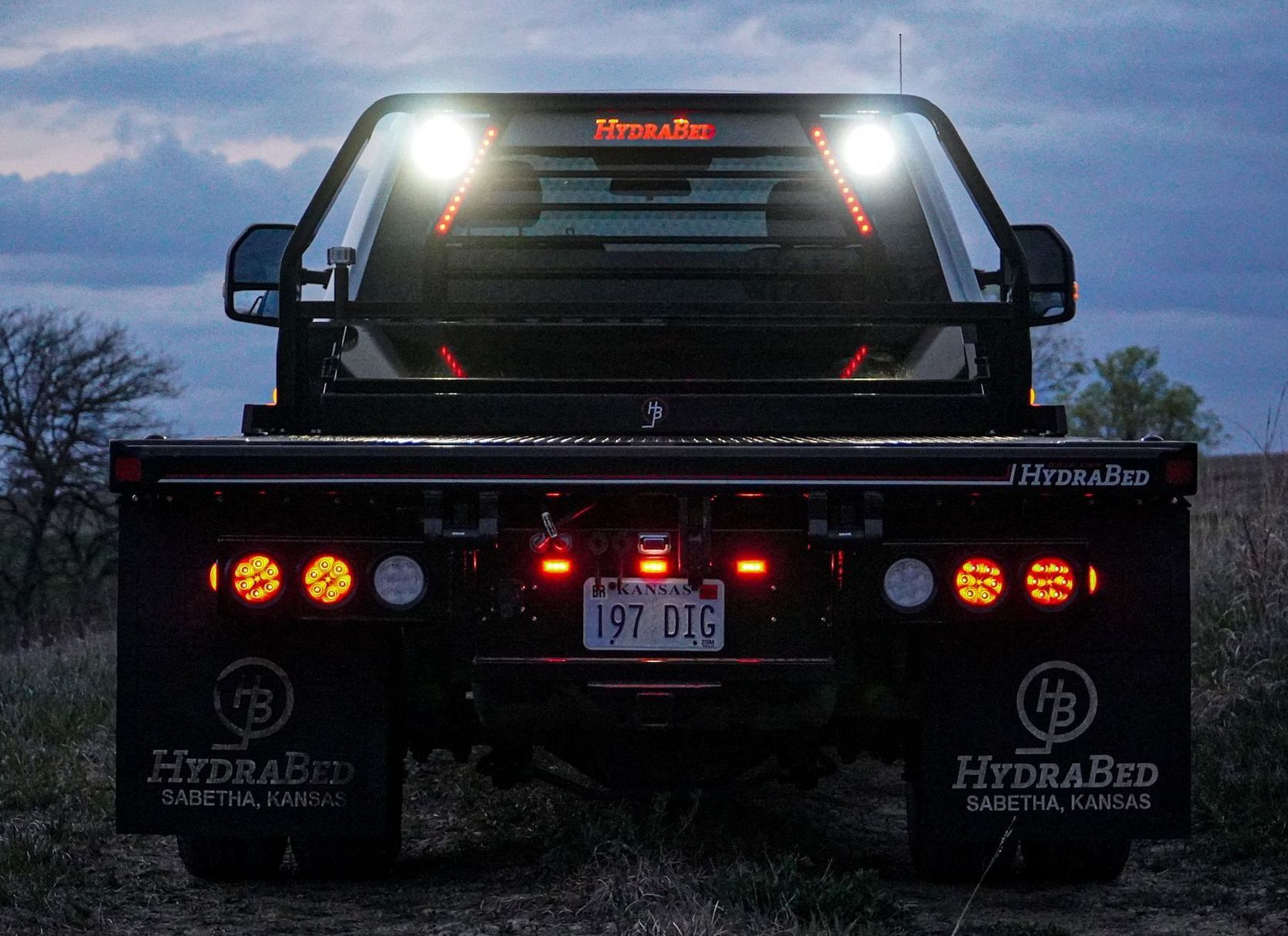

LED Work Light Kit

Light Up the Back End of Your Truck

• Light angle and rotation are user adjustable
• Wiring concealed in headache rack
• 720 Lumen output
• Heavy duty design with powder coated, die cast aluminum housing and poly-carbonate lens
• Low profile design – 2" deep, 4" in diameter
• Stainless steel mounting hardware

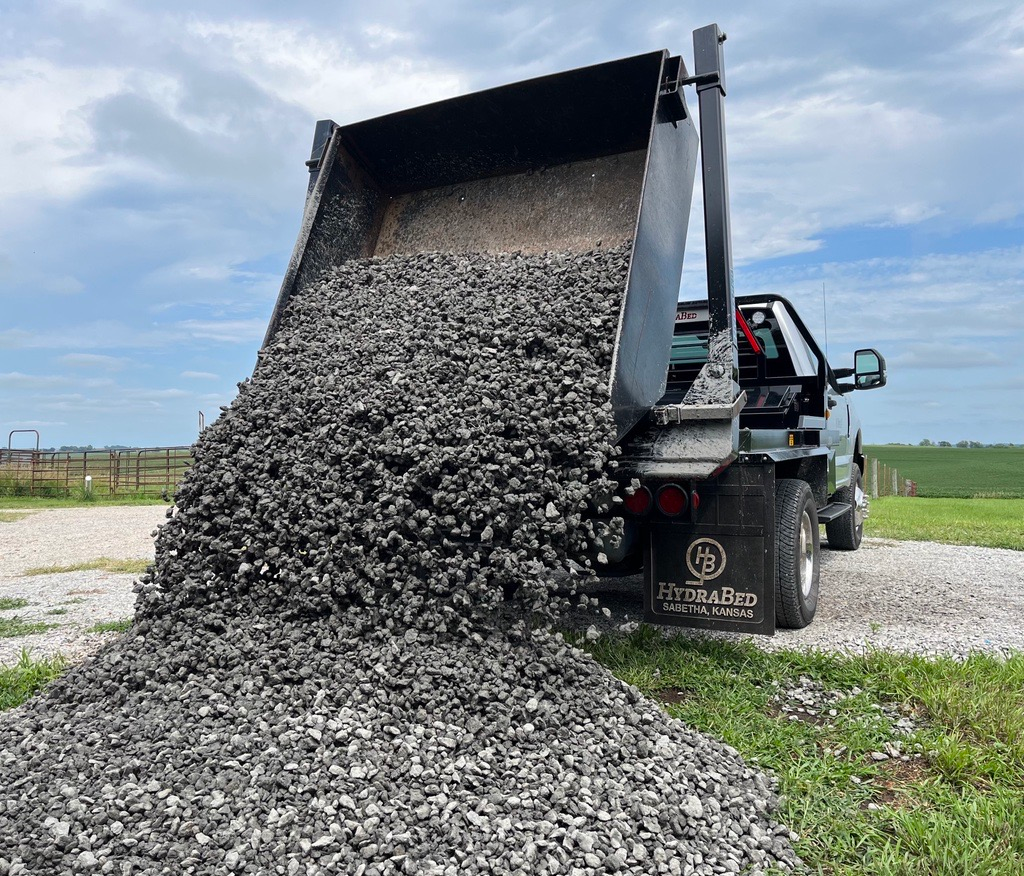

Dump Box

Easily Mount, Dismount and Dump

• Mount, dismount, and dump with the use of HydraBed® arms and quick connect lift brackets
• Compatible with the HydraFeeder^® – Across Bed Toolbox combination and with HydraFLKR™ (consult factory for specific details)
• Struck capacity: 2 cubic yards
• Dimensions: 21" high, 74" long, 68 1/2" wide
• Weight: 355 lbs
• Dumping angle: up to 180 degrees

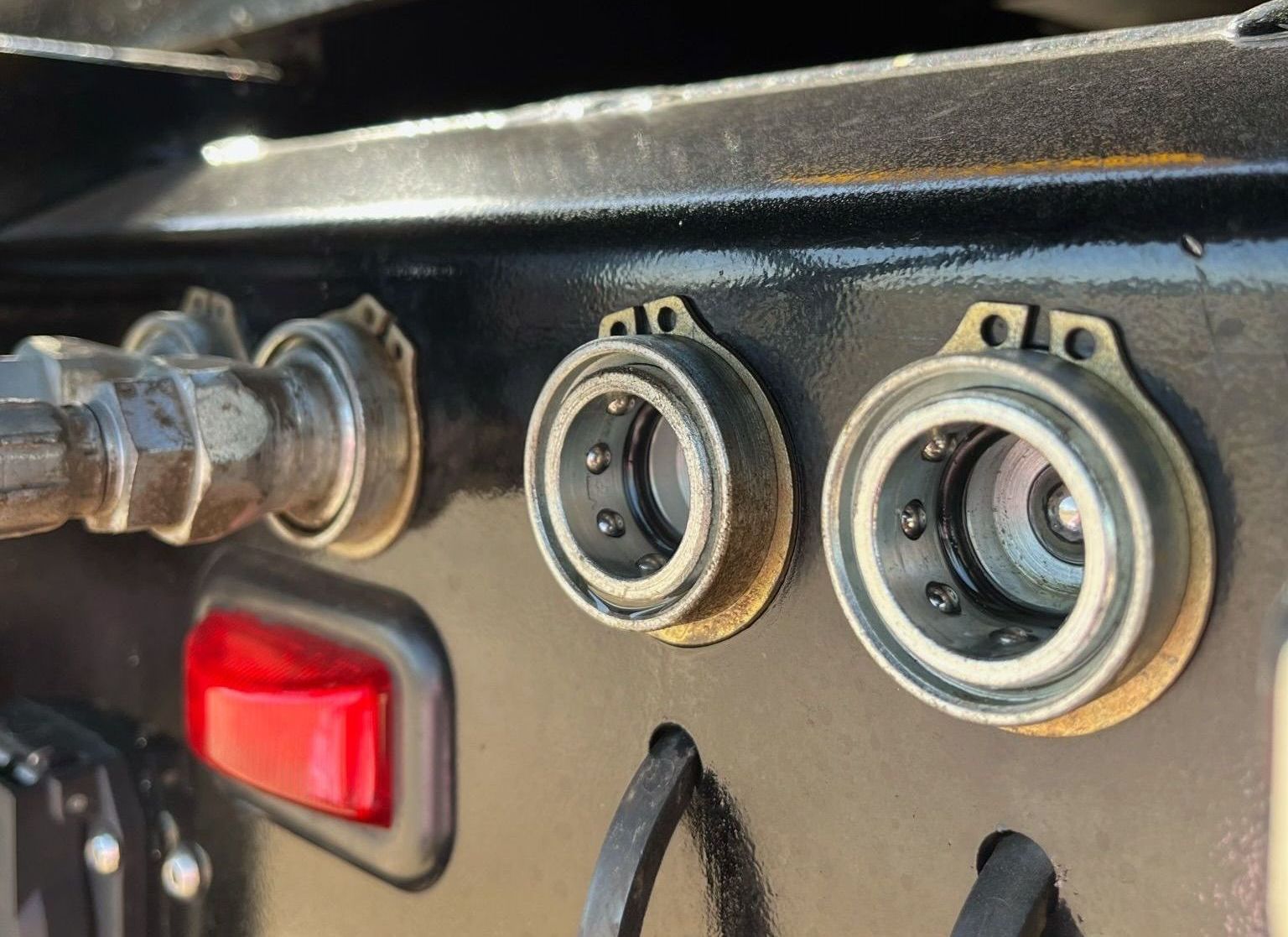

Auxiliary Hydraulics

Rugged, Dependable Bale Handling

• Provides fully variable flow to auxiliary hydraulic function
• Cab-controlled
• Flows to 11 GPM at 2000 engine RPM
